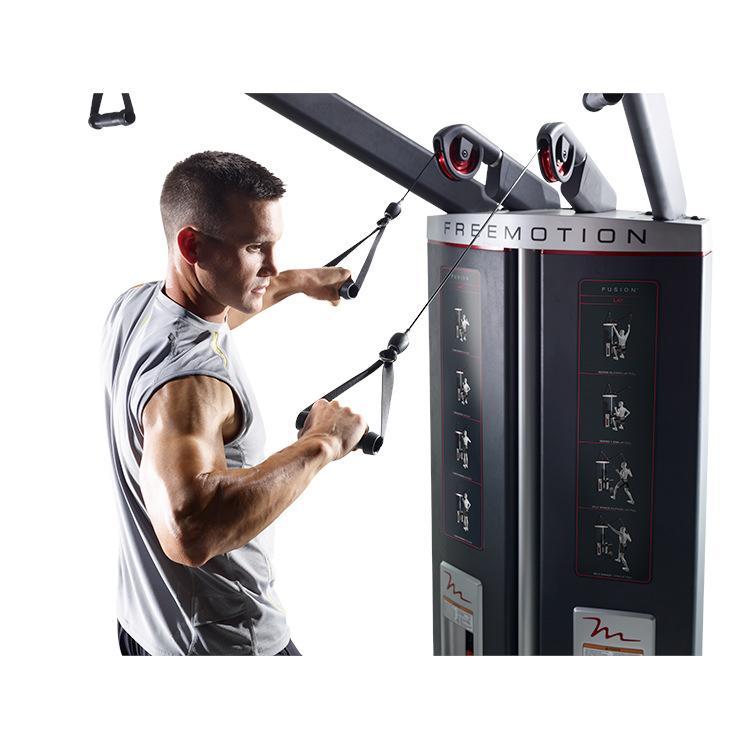

FreeMotion F502 Genesis DS Lat Pull / High Row
STRENGTHEN THE PLANE
Engage arms, shoulders, back and stabilizer muscles in a variety of pulling options including the frontal plane, rotational pull and unilateral pull.
PERFECT FIT
Contoured, thigh pads adjust in height and swivel and slide to fit people of all sizes.
PIVOT SEAT PAD
Quickly fold away the padded seat to change from seated to standing movements
INDEPENDENT ARM MOVEMENT
Handles can move together or one at a time to create results-driven lat exercises and single arm strength movements.
CABLE TRAVEL
Extensive cable travel allows for a full exercise flexion of 72 in (183 cm) per arm.
KICK PLATES
Solid 16-gauge, stainless steel kick plates protect the machine from wear and tear.
TWO ENCLOSED WEIGHT STACKS
Protected, limited access to moving parts is safer for your members and trainers.
INDUSTRIAL CONSTRUCTION
This machine is built with 11 and 7-gauge steel tubing and is electrostatically powder-coated with paint that has undergone 2,000 hours of salt spray testing.
WEIGHT CAPACITY
Built tough and made to last, the Genesis DS Lat Pull / High Row can accommodate up to 400 lbs (181 kg).
WHEELCHAIR ACCESSIBLE
The open design of this piece makes it wheelchair accessible and welcoming to users of all fitness levels.
WEIGHT STACK
Two 180 lbs(81.6 kg) Stacks
EFFECTIVE RESISTANCE
1 Arm - 90 lbs (40.8kg) | 2 Arms - 180 lbs (81.6kg)
CABLE TRAVEL
72 in (183 cm) per arm
WHEELCHAIR ACCESSIBLE
Yes
STANDARD FRAME COLORS
Dell Gray
UPHOLSTERY COLOR
Black Vinyl
PRODUCT DIMENSIONS
54 x 48 x 84 in (173.1 x 121.9 x 213.3 cm)
PRODUCT WEIGHT
709.8 lbs (322 kg)
SHIPPING DIMENSIONS (LxWxH)
Box 1: 74.8 x 38.9 x 47.5 in (198.9 x 99 x 120.7 cm) | Box 1: 74.8 x 38.9 x 47.5 in (198.9 x 99 x 120.7 cm)
SHIPPING WEIGHT
830 lbs (376.6 kg)
REGULATORY APPROVAL
EN957, CE
WARRANTY | US & INTERNATIONAL
10-Year Frame | 3-Year Parts | 1-Year Cable & Labor
120-Days Other
